product-755-497

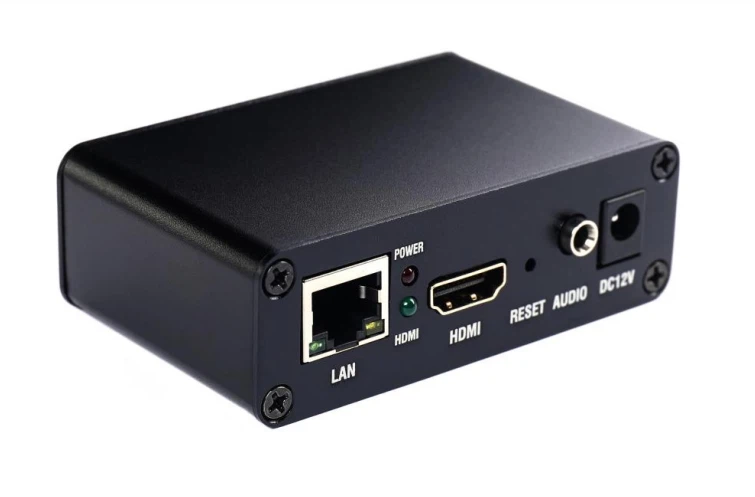

DMB-8900A-EC MINI ProVideo Streaming Encoder muaj kev ua tau zoo, tsis tshua muaj latency thiab qis me ntsis rau IPTV/OTT systems, paub txog Video & Suab tiag-lub sijhawm xa tawm hauv internet, thiab txais lub xeev- ntawm-- art compression technology ntawm H.26, 25/25/2019 1080p ib. Nrog rau cov yeeb yaj kiab muaj zog ua ntej- compression thiab ua tau zoo adaptive video compression algorithm, nws muaj peev xwm muab cov yeeb yaj kiab meej meej, zoo nkauj txawm tias qis me ntsis uas tuaj yeem txuag tus nqi ntawm bandwidth.

DMB-8900A-EC -EC MINI ProVideo Streaming Encoder lees txais 1 * HDMI cov tswv yim, tom qab ntawd tso tawm 4 pawg TS dhau IP hauv H.264 hom nrog ntau- raws tu qauv, ntau qhov kev daws teeb meem uas tuaj yeem hloov kho dawb raws li koj xav tau.

DMB-8900A-EC -EC MINI muab kev pabcuam thib ob uas ua haujlwm tau zoo, uas tuaj yeem siv rau kev kawm, kev saib xyuas kev noj qab haus huv, IPTV, kev sib tham, kev kawm nyob deb, kev sib tham xov xwm, tsev hais plaub, kev ruaj ntseg rau pej xeem, tuam txhab nyiaj, kev thauj mus los thiab lwm daim ntawv thov kev lag luam.

Nta:

Video tswv yim: ib channel HDMI + 3.5mm nyob rau hauv

⚫ Video compression mus txog Full HD 1080P @ 60 FPS tawm

⚫ Txhawb H265, H.264 High/Main/Baseline Profile thiab AC3, AAC, MP3, MP2 audio

compression

⚫ Bitrate hom: CBR/VBR 16kbps ~ 12Mbps

⚫ Txhawb streaming daws teeb meem teeb tsa2 / 3

DMB-8900A-EC MINI ProVideo Streaming Encoder (HDMI IN)

Website: www.digicast.cn │ E-mail: info@digicast.cn │ Tel: +86 571 85020366 │ Fax: +86 571 85020368

⚫ Muaj peev xwm ntawm cov duab parameter nqis

⚫ Insertable ntawm lub logo thiab Scroll Caption; Adjustable ntawm lub suab nce;

⚫ Video Output: Ntau qhov tso zis tawm ib qho kev pabcuam los txhawb kev tshaj tawm, VOD, IPTV thiab

OTT, Txawb / web, Teem lub thawv ntawv saum toj kawg nkaus

⚫ Txhawb txog li 4 pawg TS dhau IP ntws tawm.

⚫ Hloov tau ntawm lub suab tso zis hom: Sab laug, sab xis thiab lub tso suab

⚫ Configurable ntawm Multi- tus nqi, Multi- daws teeb meem, Multi- raws tu qauv

⚫ RTMP / RTSP / HTTP / SRT / UDP / RTP

⚫ Txhawb HDCP thev naus laus zis, ONVIF Network Video Protocol

⚫ Txhawb ntau yam khoom siv rau tib lub sijhawm ntawm lub computer

⚫ Web-raws li kev tswj hwm

⚫ Puv -duplex hom 1000M

Daim ntawv thov

IPTV & OTT system

⚫ Digital Signage Project

⚫ Tej thaj chaw deb Video Conference

⚫ Live Streaming

⚫ Digital TV Broadcasting System

⚫ Digital TV Programs Transmission

⚫ Hotel TV System

⚫ CATV Broadcasting system

⚫ Ntug sab ntawm Digital TV nraub qaum network

Hais txog US

DIGICAST-Pioner Thiab Leader Of Video Transmission Technology System thiab Kev daws teeb meem, tsom mus rau kev tsim, tsim thiab muag khoom rau cov khoom hauv digital TV / IPTV / OTT headend, video live application. Nrog rau cov chaw zoo tshaj plaws, cov cuab yeej siv siab tshaj thiab cov khoom zoo, DIGICAST cov khoom siv dav siv hauv ntau tshaj 300 TV & Broad-casting tswv thoob ntiaj teb raws li kev ua haujlwm siab ruaj khov.

Khoom zoo

DIGICAST cog lus tias cov cuab yeej siv 100% tag nrho cov khoom tshiab, tsis txhob siv thib ob -cov khoom, sab saum toj- ntawm -- kab zoo uas tsim los rau kev tshaj tawm xov xwm video tus neeg teb xov tooj.

DIGICAST cov khoom ua haujlwm ruaj khov hauv ntau dua 300+ cov neeg ua haujlwm video, 24 * 7 * 365 hnub ua haujlwm.engineers pab pawg muab lub neej- lub sijhawm pub dawb kev pab cuam thiab kev pabcuam chaw taws teeb.

DIGICAST cov kws tshaj lij hauv kev tshaj tawm xov xwm thiab xov xwm daws teeb meem, cov cuab yeej headend, terminals, software thiab hardware system, peb muab ib qho chaw nres tsheb daws teeb meem rau kev sib kis video.

product-1000-1000

Cim npe nrov: zoo tshaj plaws muag h.265 1080p 60fps encoder, Tuam Tshoj zoo tshaj plaws muag h.265 1080p 60fps encoder manufacturers, lwm tus neeg, Hoobkas

Specifications

Video encoding

Video compression: H.265/HEVC, H.264/MPEG-4 AVC
Video inputs: HDMI (HDCP txaus siab) los yog SDI nyob rau hauv/loopout rau kev xaiv
Input daws teeb meem:

1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540, 720x540,720x480, 720x404,704x576,604x576,604x576

Output daws teeb meem:

Main ntws

1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540, 720x540,720x480, 720x404,704x576,604x576,604x576

Sub{0}}kwj

1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480,640x300,352X288,

320X240,320X180 Nws

Ntsis- tus nqi: 16kbps ~ 12Mbps, CBR/VBR
Video Ncej tus nqi: 30/25fps
OSD: text, photo
Kev ua yeeb yaj kiab ua ntej-: txo suab nrov, Ntsej muag, Lim

Audio Encoding

Input interface: 1 * HDMI lossis 1 * SDI embedded suab rau kev xaiv, 1 * 3.5mm kab nyob rau hauv (suab nrov adjustable)
Suab compression: AAC, MP3
Kev ntsuas tus nqi 32KHz, 44.1 KHz, 48 KHz thiab lwm yam.
Audio Bit-rate: 48Kbps, 64 Kbps, 96 Kbps, 128 Kbps, 16 Kbps, 192 Kbps, 256 Kbps, 384 Kbps

IP Streaming tso zis

Thauj raws tu qauv: TS dhau IP tso zis, HLS, RTSP, HTTP, RTMP, UDP multicast / unicast, ONVIF raws tu qauv
Rau HDMI / SDI nyob rau hauv / loopout rau IP tso zis: 2 raws nrog ntau dua kev daws teeb meem (txog 1080P) rau daim ntawv thov loj screen, 2 raws nrog kev daws teeb meem qis (txog 720P) rau daim ntawv me me
Txhawb RTMP Username thiab Password rau kev txheeb xyuas ntawm IPTV Server
Connector: RJ45,100M / 1000M
