Txheej txheem cej luam:
Nta:
Advanced video compression--H.264/AVC, (H.265/HEVC compression xaiv)
Yooj yim rau kev teeb tsa thiab saib xyuas--Ua haujlwm ntawm LCD Screen thiab Web Management
Ua haujlwm ruaj khov--24 * 7 teev kev tshaj tawm zoo

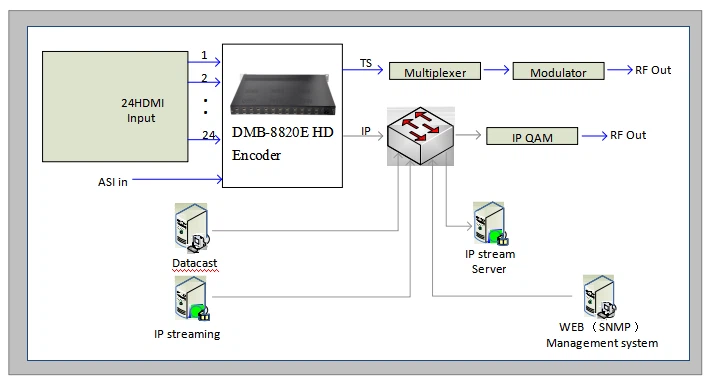

Daim ntawv thov:
- Ntau yam ntawm DTV / IPTV / CATV Broadcasting Systems
- lDistribute IP qhov chaw rau Streaming Server hauv IPTV System
- l Kev tshaj tawm, saib xyuas, kev cob qhia thiab kev qhia l
- lEnterprise, tsev so, tsev kawm ntawv, tsev kho mob, tsev noj mov, pej xeem chaw thiab lwm yam l
.
Specification:
VIDEO SPECIFICATIONS
Video compression: H.264/AVC, H.265/HEVC(Option)

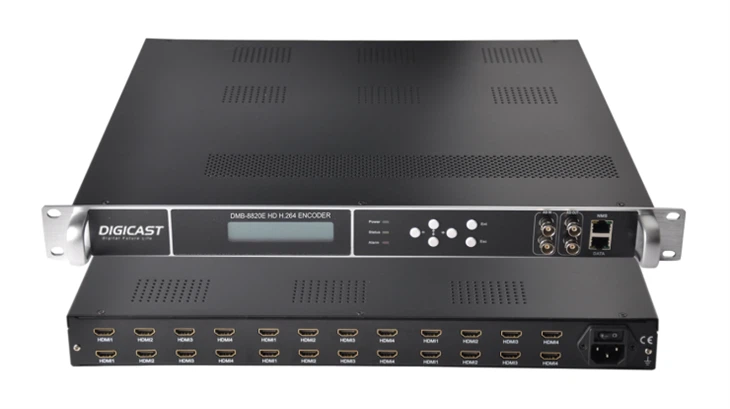

Video inputs: Version 1: 4/8/12/16/20/24 * HDMI (DMB-8820E)
Version 2: N * HDMI + N * Tuners (DMB-8820E Ntxiv, Max 24 Channels)
Cov tswv yim daws teeb meem: 1920x1080@60P, 1920x1080@60i,
1920x1080@50P, 1920x1080@50i,
1280x720@60P, 1280x720@50P
720x576@50i, 720x480@60i
Kev daws teeb meem tso zis(Max 1080P @ 60 FPS): 1920×1080@60P, 1920×1080@25P,
1280×720@30P, 1280×720@25P,
720×576@25P, 720×480@30P(Kev them nyiaj yug 1080P @ 60 FPS tawm)
Encoding: MPEG-4 AVC / H.264, H.265 / HEVC (Option)
Ntsis- tus nqi: 1Mbps ~ 13Mbps
Rate Control: CBR, VBR
GOP Structure: IPPPP (P Ncej hloov kho,tsis muaj B Frame )
AUDIO SPECIFICATIONS
Encoding: MPEG-1 Txheej 2, LC-AAC, HE-AAC
Kev daws teeb meem: 24-ntsis
Audio Gain: 0-255
Ntsis-rate: 64kbps, 128Kbps, 192kbps, 224kbps, 256kbps, 320kbps, 384kbps
Sampling tus nqi: 48KHz
UAS INPUTS
Connector BNC: poj niam, 75Ω
Packet Ntev: 188 bytes
Number of Input Ports: Dual cais ASI ports
Teeb liab theem: 200-800mVp-p
Qhov siab kawg me ntsis- tus nqi ib qhov chaw nres nkoj: Tsawg dua lossis sib npaug li 100Mbps
Tiv tauj peb:
Lourisa
Muag Engineer
Hangzhou DIGICAST Technology Co., Ltd
Tel:+86 0571-85020366 ▏ Fax:+86 0571-85020368
Mob/Wechat/WhatsApp:+86 18457178579
E-mail:sales005@digicast.cn
Lub vev xaibTau qhov twg los: https://digicast.cn/
Ntxiv:9/F, No.1 Building Yitian Plaza, No.292 Eastcom Avenue, Hangzhou, 310053, Suav teb
FAQ:
Kuv tuaj yeem tau txais kev pab txhawb nqa li cas?
Xa peb e-mail lossis siv whatsapp hu rau qhov kev pabcuam muag. Peb cov neeg ua haujlwm pabcuam kev pabcuam yuav sim teb raws sijhawm
Yuav ua li cas hom shipping txoj kev rau cov qauv thiab cov khoom xa tuaj?
Feem ntau peb yuav nkoj los ntawm huab cua nthuav qhia, xws li DHL, FedEx, UPS lossis nyob ntawm cov neeg siv khoom xav tau.
Thaum twg kuv daim ntawv xaj yuav raug xa tuaj?
Feem ntau, peb yuav npaj cov khoom xa tuaj tsis pub dhau 3-5 hnub ua haujlwm tom qab tau txais cov nyiaj them poob haujlwm, yog tias muaj qee qhov kev xav tau lossis cov xaj xaj, Thov lees paub nrog tus neeg muag khoom
Kuv cov kev xaiv them nqi yog dab tsi?
Peb tuaj yeem lees txais kev them nyiaj los ntawm kev xa nyiaj hauv tuam txhab, T / T, Paypal (5% tus nqi ntxiv), kev sib koom ua haujlwm sab hnub poob, Alibaba kev lees paub kev txiav txim yeem xaiv
Ua tau koj ua OEM rau peb?
Yog lawm. Yog tias muaj qee qhov kev txiav txim kom muaj nuj nqis, peb tuaj yeem ua OEM suav nrog luam ntawv, logo, thiab cov qauv tsim rau koj.
Koj tus MOQ yog dab tsi?
Vim peb lub tuam txhab tsim ntau yam khoom, qhov tsawg kawg nkaus txiav txim kom muaj nuj nqis sib txawv raws li. Cov khoom sib txawv yog cuam tshuam los ntawm cov khoom siv raw, cov khoom muaj nqis, lub voj voog ntau lawm, kev txiav txim nce qib, thiab cov khoom muag. Qhov tsawg kawg nkaus txiav txim kom muaj nuj nqis ntawm qee cov khoom yog 1 daim, thaum qhov kev txiav txim yam tsawg kawg nkaus ntawm qee cov khoom yuav tshaj 1,000 daim. Thov nug peb tus neeg muag khoom kom ntxaws kom tau txais cov ntaub ntawv tseeb thiab tseeb tshaj plaws.
Hais txog peb:
Cim npe nrov: Tuam Tshoj udp encoder manufacturers, lwm tus neeg, Hoobkas
Specifications
FTA TUNERS INPUT
DVB -T/T2 Tuner
Ntau zaus: 30MHz-1000Mhz
Bandwidth: 6Mhz, 7Mhz, 8Mhz
Qib: -87 ~ -20dBm
Constellation: QPSK, 16QAM, 64QAM, 256QAM (Tsuas yog DVB-T2)
FEC Demodulation: DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Guard Interval: DVB-T: 1/4, 1/8, 1/16, 1/32
DVB-T2: 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128
ISDB-T/Tb Tuner
Input zaus: 30 ~ 900MHz
Bandwidth: 6 MHz
Constellation: DQPSK, QPSK, 16QAM, 64QAM
Qhov sib txawv: 0, 4, 8, 16
Guard Interval: 1/32, 1/16, 1/8, 1/4
Kis hom: 2K, 4K, 8K (FFT)
FEC (Code Rate): 1/2, 2/3, 3/4, 5/6, 7/8
DVB -C Tuner
Input zaus: 110 ~ 862MHz
DVB-C (J83.A, J83.C,TSIS MUAJ Annex B)
Carrier: Annex A, Annex C
Constellation (QAM): 16, 32, 64, 128, 256, 64/256
Bandwidth (Mhz): 8, 6
Lub cim tus nqi (Mbaud): 5-7, 4.2-5.3
Tuner interface: Txuas F- poj niam hom
DVB -S/S2/S2X Tuner
(DVB-SS2X yog kev xaiv thiab tus nqi ntxiv thaum xaiv DVB-SS2 tuner input)
Input zaus: 950-2150Mhz
Cim npe tus nqi: 1 ~ 54MSps (DVB-S QPSK)
1 ~ 60MSps (DVB-S2/S2X QPSK)
1 ~ 60MSps (DVB-S2/S2X 8PSK)
1 ~ 58MSps (DVB-S2/S2X 16APSK)
1 ~ 55MSps (DVB-S2/S2X 32APSK)
1 ~ 34MSps (DVB-S2/S2X 64APSK)
Lub teeb liab zog: -65 ~ -25dBm
Ib nrab SyQuest Baseband muab tub lim (Roll tawm yam):
0.35 rau DVB-S
0.15 txog 0.35 rau DVB-S2
0.05 txog 0.35 rau DVB-S2X
FEC demodulation: 1/2, 2/3, 3/4, 5/6, 7/8 (DVB-S QPSK)
1/4, 1/3, 2/5, 1/2, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (DVB-S2 QPSK)
3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (DVB-S2 8PSK)
2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (DVB-S2 16APSK)
3/4, 4/5, 5/6, 8/9, 9/10 (DVB-S{11}}APSK)
11/15, 7/9, 4/5, 5/6 (DVB-S2X 64APSK-option)
Demodulation hom: QPSK, 8PSK, 16APSK, 32APSK (tsuas yog DVB-S2)
LNB polarity xaiv: Vol 0, 13V, 18V Xaiv tau
LNB band xaiv lub suab: 0/22Khz Xaiv tau
Tawm tswv yim impedance: 75 Ω
FEC (Code Rate): 1/2, 2/3, 3/4, 5/6, 7/8
DiSEqC: DiSEqC 2.0 ua raws
ATSC Tuner muaj
Ntau zaus: 50–{1}} MHz
Cov ntsiab lus tseem ceeb: ATSC A/53
Cov tswv yim theem: -34 rau +40 dBmV
Constellation: 8-VSB
Bandwidth: 6Mhz
DVB-ASI Input
Connector: BNC poj niam, 75Ω
Teeb liab theem: 200-800mVp-p
Pob ntawv ntev: 188 bytes
Qhov siab kawg me ntsis- tus nqi: ib qhov chaw nres nkoj Tsawg dua lossis sib npaug li 100Mbps
Number of input ports: Dual cais ASI ports
Multiplexing
Qhov siab tshaj plaws PID remapping 180 input ib channel
PID remapping los ntawm kev txiav los yog manually
PSI/SI: SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert
Kev kho PCR raug
IP / ASI tawm
ASI I/O
DVB-ASI: 2 ASI input thiab output, 75Ω, BNC, 188Bytes
MPEG-2 TS dhau DVB-ASI (EN 50083-9)
ASI tawm: xaiv daim iav ntawm ib MPTS
Tus IP I/O
RJ45 Chaw nres nkoj: 100/1000M GbE Chaw nres nkoj, 1 * DATA chaw nres nkoj siv rau kev tawm tswv yim thiab tso tawm
IP tso zis: 4*MPTS+512 SPTS los ntawm cov ntaub ntawv chaw nres nkoj
IP input: 128 * MPTS / SPTS UDP / IP cov tswv yim los ntawm cov ntaub ntawv chaw nres nkoj
TS dhau UDP, unicast, thiab multicast streaming TS dhau RTP / RTSP
Configurable Pob ntawv loj (2-7) x 188 Bytes, lim tsis muaj pob ntawv
SPTS txwv xaiv tau: 2.3M, 2.5M, 2.9, 3.3M, 3.8M, 4.6M, 5.7M, 7.6M, 11.5M, 23M
Qhov system
Local interface: LCD + tswj cov nyees khawm
Configuration interface: Web-raws li
Txhim kho tej thaj chaw deb: ntawm network
Connector: RJ45, 100M / 1000M Ethernet interface
Lub cev thiab lub zog
Voltage: 100 txog 120/200 rau 240V AC ± 10%; 50/60Hz
Kev siv hluav taws xob: 60W
Ua haujlwm kub: 0 ~ 50 degree
Cia kub: -20 ~ 80 degree
Qhov Loj: 483mm (W) * 380mm (D) * 44.5mm (H)
Qhov hnyav: 9.3 kg / pc
