Txheej txheem cej luam

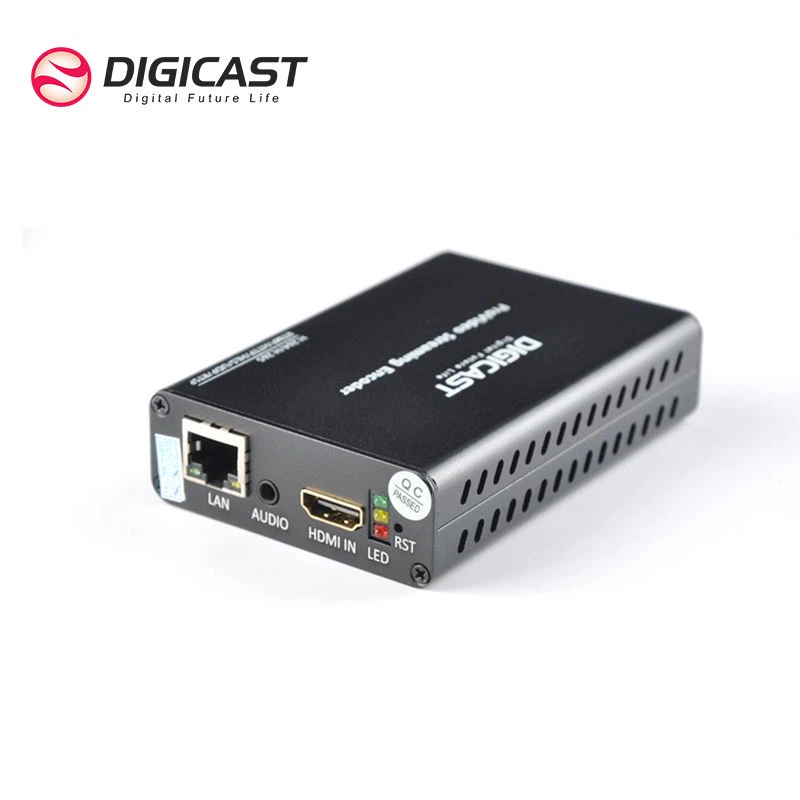

DMB-8900N Plus Professional Video Streaming Encoder (nrog 1 × HDMI input thiab 1 × HDMI lub voj tso zis) muab kev ua haujlwm siab, qis latency, thiab bandwidth- ua haujlwm tau zoo rau IPTV / OTT daim ntawv thov. Nws ua rau lub sijhawm tiag tiag - yees duab thiab suab xa tawm hauv Is Taws Nem thiab suav nrog H.264/H.265 AVC compression technology, txhawb kev daws teeb meem txog 1080p. Los ntawm kev ua yeeb yaj kiab ntse ua ntej thiab hloov kho compression algorithms, tus encoder tswj cov yeeb yaj kiab zoo, txawm tias tsawg bitrates, txo qis bandwidth noj thiab cov nqi cuam tshuam.
Lub DMB-8900N Plus lees txais ib qho HDMI cov tswv yim thiab muab ib qho HDMI voj-los ntawm cov zis, thaum ib txhij encoding thiab outputting mus txog plaub ywj siab H.265 thauj kwj hla IP. Nws txhawb ntau txoj cai thiab kev daws teeb meem, tso cai hloov pauv hloov mus rau ntau yam kev xav tau streaming.
Tsis tas li ntawd, cov cuab yeej los nrog cov khoom siv txhim kho software (SDK), ua kom muaj kev sib koom ua ke thoob plaws ntau yam kev lag luam xws li kev kawm, kev noj qab haus huv, IPTV, kev sib tham, kev kawm deb, kev tshaj tawm xov xwm, kev hais plaub hauv tsev hais plaub, kev ruaj ntseg pej xeem, tuam txhab nyiaj, thiab kev thauj mus los.
Nta:
*
Video tswv yim
1-channel HDMI input nrog lub peev xwm los ntawm lub voj voog
Txhawb kev daws teeb meem
Txog li 720P thiab 1080P siab -txhais yees duab tawm tswv yim
Kev them nyiaj yug Authentication
RTMP username thiab password authentication rau IPTV server
Ntawm -Screen Features
Kev them nyiaj yug rau embedded logo thiab scrolling caption overlay; adjustable suab nce
Streaming tso zis
Txhawb nqa mus txog 4 IP- raws li kev thauj mus los tso tawm
Encoding hom ntawv
Video: H.265 HEVC, H.264 Main Profile, H.264 High Profile
Suab: MP3, AAC compression
Bitrate Tswj
CBR (Constant Bit Rate) / VBR (Variable Bit Rate) hom muaj
Duab Parameter Kho
Tag nrho cov duab parameter tswj (brightness, contrast, saturation, thiab lwm yam)
Audio Output Options
Xaiv lub suab tso zis hom: Sab laug channel, Txoj cai channel, lossis lub tso suab
Multi-Output Configuration
Multi-screen, multi- raws tu qauv, qis-bitrate siab- cov duab zoo
Streaming raws tu qauv
HLS, RTSP, HTTP, UDP, RTMP txhawb nqa
Hla -Platform Playback
Kwj siv tau los ntawm HLS raws tu qauv ntawm tag nrho cov khoom siv iOS no (iPhone, iPad, MacBook, thiab lwm yam) yam tsis muaj kev teeb tsa ntxiv player, ua kom txhua lub sijhawm, txhua qhov chaw saib
.
Daim ntawv thov
|
Ntau yam ntawm DTV / IPTV / CATV Broadcasting Systems Faib IP qhov chaw rau Streaming Server hauv IPTV System Kev tshaj tawm, saib xyuas, kev cob qhia thiab kev qhia l Enterprise, tsev so, tsev kawm ntawv, tsev kho mob, tsev noj mov, pej xeem qhov chaw thiab lwm yam. |
|
| FAQ | |
|
Tuam txhab Profile DIGICAST yog lub tuam txhab ua haujlwm siab - thev naus laus zis tshwj xeeb hauv R&D, kev tsim khoom, muag, thiab kev pabcuam engineering ntawm digital TV headend thiab cov khoom siv tshaj tawm. Nrog ntau tshaj kaum xyoo ntawm kev lag luam muaj nyob hauv Suav teb, lub tuam txhab tau tsim nws tus kheej ua tus muab kev pabcuam hauv kev lag luam. Product Portfolio Peb cov khoom siv feem ntau suav nrog digital TV tshaj tawm cov khoom siv thiab cov tshuab, suav nrog: Headend teeb liab kev daws teeb meem Integrated receiver decoders rau DVB-S/S2, ATSC, DVB-T, ISDB-T, thiab DVB-C HD/SD video encoders txhawb multiplexing, ASI input/output, thiab multi-channel tuner input RF tso zis transmodulators Multi-channel HDMI-rau-RF encoder modulators Modulators nrog IP/ASI input thiab configurable RF tso zis (DVB-C, DVB-T, ISDB-T, ATSC) IPTV/OTT kev daws teeb meem rau tsev so, tsev kho mob, tsev kawm ntawv, thiab cov zej zog nyob Txoj Cai Warranty DIGICAST muab tus qauv tsib- xyoo lav rau qhov zoo- cov teeb meem ntsig txog, nrog rau kev txhawb nqa kev ua neej mus ib txhis. Vim li cas thiaj xaiv DIGICAST? Peb tau cog lus tias yuav ua rau kev lag luam tshaj tawm hauv TV los ntawm kev ua lag luam txuas ntxiv thiab nthuav dav hauv kev lag luam. Pom tau tias yog thawj-tier kev tshaj lij video ua haujlwm thiab cov chaw muab kev pabcuam hauv Suav teb, peb xa cov kev pabcuam txhim khu kev qha, siab -kev ua tau zoo rau kev lag luam hauv tsev thiab thoob ntiaj teb. Thov ib daim Quote Yog, peb zoo siab los muab tus nqi rau cov khoom lag luam. Thov hu rau peb ntawm email ntawm info@digicast.cn lossis hauv xov tooj, thiab peb yuav teb sai sai nrog cov lus qhia ntxaws. Kev pab txhawb nqa Rau kev pab cuam, koj tuaj yeem xa email rau peb lossis hu rau ntawm WhatsApp. Peb pab neeg txhawb nqa siv zog los teb raws sijhawm thiab ua tau zoo. Shipping Txoj Kev Cov qauv thiab cov khoom xa tuaj yog feem ntau xa los ntawm cov neeg nqa khoom thoob ntiaj teb xws li DHL, FedEx, lossis UPS, txawm tias peb tuaj yeem ua raws li cov neeg siv khoom- tshwj xeeb shipping nyiam raws li kev thov. |
|
 |
|
 |
Cim npe nrov: ib channel encoder, Tuam Tshoj ib channel encoder manufacturers, lwm tus neeg, Hoobkas
Specifications
IP Stream Input
Txhawb 128 * IP Streaming tswv yim SPTS / MPTS UDP / RTP txhua qhov chaw nres nkoj, tag nrho 3 * Gigabit chaw nres nkoj (DATA1 / DATA2 / DATA3)
Ethernet chaw nres nkoj Thauj raws tu qauv TS hla UDP / RTP unicast thiab multicast, IGMP V2 / V3
Kis tus nqi Max 800Mbps rau txhua lub tswv yim
ASI Stream Input
Kev them nyiaj yug: 6 * ASI tswv yim
Connector: BNC poj niam, 75Ω
Teeb liab theem: 200-800mVp-p
Pob Length: 188 bytes
Qhov siab kawg me ntsis- tus nqi: ib qhov chaw nres nkoj Tsawg dua lossis sib npaug li 100Mbps
RF tso zis Modulation
ISDB-T Modulation
ISDB-T RF tawm: 16 * ISDB-T tsis yog- zaus RF tawm,
Ntau zaus: 96 ~ 864MHz, 1Khz ib kauj ruam
ISDB-T Standard ARIB STD-B31
Constellation: DQPSK, QPSK, 16QAM, 64QAM
Guard Interval: 1/32, 1/16, 1/8, 1/4
Kis hom: 2K, 4K, 8K
Tus lej lej: 1/2, 3/4, 5/6, 7/8
Bandwidth: 6 MHz
TS ntsis tus nqi=21 Mbit / s
MER Ntau dua lossis sib npaug li 40 dB
tag nrho cov zis theem hloov -35 ~ -5dBm los ntawm 0.1 dB kauj ruam
DVB-T Modulation
Channel:16*DVB-T tsis yog{2}} zaus RF tawm
Ntau zaus: 96 ~ 864MHz, 1Khz ib kauj ruam
Modulation txuj: EN300744
Bandwidth: 6M, 7M, 8M
FFT hom: 2K, 8K
Constellation: QPSK, 16 QAM, 64 QAM
Guard Interval 1/4, 1/8, 1/16, 1/32
FEC 1/2, 2/3, 3/4, 5/6, 7/8
TS ntsis tus nqi 31 Mbit / s
MER Ntau dua lossis sib npaug li 40 dB
tag nrho cov zis theem hloov: -35 ~ -5dBm los ntawm 0.1 dB kauj ruam
ATSC -T Modulation
Channel:16*ATSC-T tsis yog{2}} zaus RF tawm
Ntau zaus: 96 ~ 864MHz, 1Khz ib kauj ruam
Constellation: 8 VSB
TS ntsis tus nqi=19 Mbit / s
MER Ntau dua lossis sib npaug li 40 dB
tag nrho cov zis theem hloov -35 ~ -5dBm los ntawm 0.1 dB kauj ruam
IP Stream tso zis
Kev them nyiaj yug: 8 * IP (MPTS / SPTS) UDP / RTP tso zis los ntawm DATA 1Port
Multiplexing
Txhawb txog li 180 PIDs ib channel nrog PID remapping (phau ntawv lossis pib)
Kev kho PCR raug
Muaj peev xwm ntawm PSI / SI SDI / PMT / TOT / PAT / BAT / CAT / TDT / NIT Insert
Tswj thiab saib xyuas
Configuration Interface: Web-raws li
Tej thaj chaw deb: upgrade ntawm network
Connector: RJ45,100M / 1000M Ethernet interface
Lub cev thiab lub zog
Qhov hluav taws xob 110 ~ 220V
Kev siv hluav taws xob: 18-20W
Ua haujlwm kub: 0 ~ 50 degree
Qhov Loj: 483mm (W) * 360mm (D) * 44.5mm (H)
Qhov hnyav: 7KG / pc
