Txheej txheem cej luam

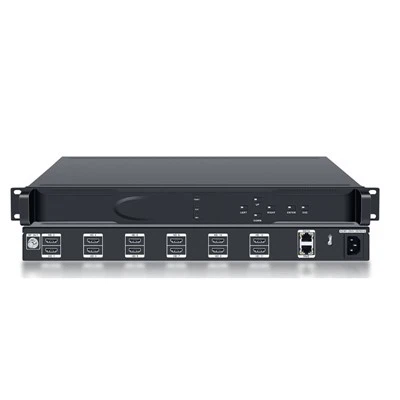

DMB-24E multi-channels FTA tuner rau RF tshaj tawm transmodulator yog qhov siab ceev demodulating thiab hloov kho tag nrho hauv ib qho khoom siv digital headend uas muaj max 24 FTA tuner inputs los hloov mus rau 4 lossis 8 lossis 16 cov khoom thauj tsis nyob ib sab nrog multiplexing. Nws kuj txhawb 128 * MPTS / SPTS UDP / IP inputs thiab 1 * MPTS & 127 * SPTS UDP / RTP IP tso zis los ntawm DATA chaw nres nkoj thiab TS input rau re-mux los ntawm 2 ASI chaw nres nkoj.
Qhov no yog cov khoom siv tiam tshiab uas hloov RF cov kev pab cuam rau lwm tus qauv RF thiab IP TS uas yooj yim tswj los ntawm kev tswj xyuas lub vev xaib los pab xa tag nrho koj cov kev pab cuam rau koj lub zos RF system.
Nta:
Ntau yam tswv yim, saj zawg zog xaiv raws li lub teeb liab qhov chaw:
1: Mus txog 24 FTA tuners tswv yim
2: 2*Types Tuners+HDMI input -- Piv txwv li: 8 DVBS/S2+8*DVB-T/T2+8*HDMI
3: 1 * Hom Tuner + HDMI input: 12 DVBS / S2+8* HDMI
Ua haujlwm ntawm LCD Screen thiab Web Management---Yooj yim nyeem LCD xim pem hauv ntej vaj huam sib luag uas ua rau nws yooj yim rau kev teeb tsa thiab saib xyuas koj cov channel, tshawb xyuas cov khoom siv, thiab txheeb xyuas IP chaw nyob yam tsis muaj lub computer.
Daim Ntawv Thov Kev Tshaj Tawm Tshaj Tawm TV--- txhawb PCR kom raug thiab PCR ncua sij hawm kho, LCN (Logical Channel Number)
Multi RF Carriers tawm-4/8/16 DVB-T/ISDB-T/ATSC/DVB-C los yog 32 QAM DVB-C tawm kev xaiv raws li cov kev pab cuam raws kom muaj nuj nqis.
Daim ntawv thov
Ntxig IP qhov chaw, hloov kho RF qhov chaw rau txhua lub TVs tshaj qhov uas twb muaj lawm RF system
Kev tshaj tawm, kev saib xyuas, kev cob qhia thiab kev qhia ntawv thov
Enterprise, tsev so, tsev kawm ntawv, tsev kho mob, tsev noj mov, pej xeem qhov chaw thiab lwm yam.
Cim npe nrov: Tuam Tshoj rf modulator manufacturers, lwm tus neeg, Hoobkas
Specifications
FTA Tuners Input
DVB-T/T2 Tuner
Ntau zaus: 30MHz-1000Mhz
Bandwidth: 6Mhz, 7Mhz, 8Mhz
Qib: -87 ~ -20dBm
Constellation: QPSK, 16QAM, 64QAM, 256QAM (tsuas yog DVB-T2)
FEC Demodulation: DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Guard Interval: DVB-T: 1/4, 1/8, 1/16, 1/32
DVB-T2: 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128
ISDB-T/Tb Tuner
Input zaus: 30 ~ 900MHz
Bandwidth: 6 MHz
Constellation: DQPSK, QPSK, 16QAM, 64QAM
Sib: 0, 4, 8, 16
Guard Interval: 1/32, 1/16, 1/8, 1/4
Kis hom: 2K, 4K, 8K (FFT)
FEC (Code Rate): 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C Tuner
Input zaus: 110 ~ 862MHz
DVB-C (J83.A, J83.C,TSIS MUAJ Annex B)
Carrier: Annex A, Annex C
Constellation (QAM): 16, 32, 64, 128, 256, 64/256
Bandwidth (Mhz): 8,6
Symbol Rate ( Mbaud): 5-7, 4.2-5.3
Tuner interface: Connecter F-poj niam hom
DVB-S/S2/S2X Tuner
Input zaus: 950-2150Mhz
Cim npe tus nqi: 1 ~ 54MSps (DVB-S QPSK)
1 ~ 60MSps (DVB-S2 / S2X QPSK)
1 ~ 60MSps (DVB-S2 / S2X 8PSK)
1 ~ 58MSps (DVB-S2/S2X 16APSK)
1 ~ 55MSps (DVB-S2/S2X 32APSK)
1 ~ 34MSps (DVB-S2/S2X 64APSK)
Lub teeb liab zog: -65 ~ -25dBm
Ib nrab SyQuest Baseband muab tub lim (Roll tawm yam):
0.35 rau DVB-S
{{0}}.15 rau 0.35 rau DVB-S2
{{0}}.05 rau 0.35 rau DVB-S2X
FEC demodulation: 1/2, 2/3, 3/4, 5/6, 7/8 (DVB-S QPSK)
1/4, 1/3, 2/5, 1/2, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (DVB-S2 QPSK)
3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (DVB-S{13}}PSK)
2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (DVB-S2 16APSK)
3/4, 4/5, 5/6, 8/9, 9/10 (DVB-S2 32APSK)
11/15, 7/9, 4/5, 5/6 (DVB-S2X 64APSK)
Demodulation hom: QPSK, 8PSK, 16APSK, 32APSK (tsuas yog DVB-S2)
LNB polarity xaiv: Vol 0, 13V, 18V Xaiv tau
LNB band xaiv suab nrov: 0/22Khz Xaiv tau
Tawm tswv yim impedance: 75 Ω
FEC (Code Rate): 1/2, 2/3, 3/4, 5/6, 7/8
DiSEqC: DiSEqC 2.0 ua raws
ATSC Tuner muaj
Ntau zaus: 50–{1}} MHz
Cov ntsiab lus tseem ceeb: ATSC A/53
Qib nkag: -34 rau +40 dBmV
Constellation: 8-VSB
Bandwidth: 6Mhz
Modulation RF tso zis kev xaiv
Modulation (4/8 * RF DVB-T / ASTC / ISDB-T lossis 16/32 DVB-C rau kev xaiv)
Connector: 1 Chaw nres nkoj, F-hom, 75Ω
Cov zis rov qab poob: 14 dB
MER Ntau dua lossis sib npaug rau 40dB
RF tso zis theem: {{0}} ~ 0dbm, 0.1db kauj ruam
Xov tooj ntawm RF Channel: 4/8
Modulation hom: DVB-C, DVB-T, ATSC, ISDB-T, DTMB kev xaiv
DVB-T Modulation
Channel: DVB-T uas nyob ib sab frequencies
Modulation txuj: EN300744
Ntau zaus: 50-960Mhz,1Khz ib kauj ruam
Modulation txuj: EN300744
Bandwidth: 6M, 7M, 8M
FFT hom: 2K, 8K
Constellation: QPSK, 16 QAM, 64 QAM
Guard Interval 1/4, 1/8, 1/16, 1/32
FEC 1/2, 2/3, 3/4, 5/6, 7/8
TS ntsis tus nqi=31 Mbit / s
ATSC-T Modulation
Channel: 8VSB nyob ib sab zaus
Constellation: 8 VSB
Ntau zaus: 50-960Mhz, 1Khz ib kauj ruam
Constellation: 8 VSB
TS ntsis tus nqi=19 Mbit / s
MER Ntau dua lossis sib npaug li 40 dB
DVB-C Modulation (16 lossis 32 DVB-C tawm kev xaiv)
16 * DVB-C tso zis MODULATION
Channel: 16 * DVB-C nyob ib sab zaus RF tawm
Ntau zaus: 50 ~ 960MHz, 1Khz ib kauj ruam
Bandwidth ntau 192 Mhz nruab nrab ntawm qhov pib zaus thiab qhov kawg zaus, teeb 16 zaus hauv 192 Mhz bandwidth ntau
MER Ntau dua lossis sib npaug li 40 dB
cim tus nqi: 5 ~ 7Mbaud
tag nrho cov zis theem hloov kho {{0}}~-5dBm los ntawm 0.1 dB kauj ruam
DVB-C Standard J83.A (DVB-C, J83.B, J83.C)
Constellation (QAM): 16,32,64,128,256
|
Tus neeg nqa khoom |
Annex A |
Annex B |
Annex C |
|
|
Lub hnub qub (QAM) |
16,32,64,128, 256 |
64 |
256 |
64/256 |
|
Bandwidth (Mhz) |
8 |
6 |
6 |
6 |
|
Symbol Rate (Mbaud) |
5-7 |
5.057 |
5.361 |
4.2-5.3 |
32 * DVB-C tso zis MODULATION
Channel: 32 * DVB-C tsis nyob ib sab zaus RF tawm
Ntau zaus: 96 ~ 864MHz, 1Khz ib kauj ruam
bandwidth ntau 768 Mhz, zaus cov ntsiab lus tuaj yeem siv tau yooj yim hauv bandwidth ntau
MER Ntau dua lossis sib npaug li 40 dB
cim tus nqi: 5 ~ 7Mbaud
tag nrho cov zis theem hloov kho {{0}}~-5dBm los ntawm 0.1 dB kauj ruam
DVB-C Standard J83.A (DVB-C, J83.B, J83.C)
|
Tus neeg nqa khoom |
Annex A |
Annex B |
Annex C |
|
|
Lub hnub qub (QAM) |
16,32,64,128, 256 |
64 |
256 |
64/256 |
|
Bandwidth (Mhz) |
8 |
6 |
6 |
6 |
|
Symbol Rate (Mbaud) |
5-7 |
5.057 |
5.361 |
4.2-5.3 |
ISDB-T Modulation
Channel: ISDB-T zaus
Ntau zaus: 50-960Mhz, 1Khz ib kauj ruam
ISDB-T standard ARIB STD-B31
Constellation: DQPSK, QPSK, 16QAM, 64QAM
Guard Interval: 1/32, 1/16, 1/8, 1/4
Kis hom: 2K, 4K, 8K
Tus lej lej: 1/2, 3/4, 5/6, 7/8
Bandwidth: 6 MHz
TS ntsis tus nqi=21 Mbit / s
MER Ntau dua lossis sib npaug li 40 dB
DTMB Standard GB 20600-2006
Constellation: 4QAM, 16QAM, 32QAM, 64QAM
Tus lej lej: {{0}}.4, 0.6, 0.8
Guard Interval: 420, 595, 945 IONS
Multiplexing
Qhov siab tshaj plaws PID remapping 180 input ib channel
PID remapping los ntawm kev txiav los yog manually
PSI/SI: SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert
Kev kho PCR raug
Max tus lej: 4 lossis 8 mux rau RF thiab 1 Mux rau 1 * MPTS
ASI I/O
DVB-ASI: 2 * ASI cov tswv yim thiab 2 * ASI tso zis, ib qho rau thaub qab, 75Ω, BNC, 188Bytes
MPEG-2: TS dhau DVB-ASI (EN 50083-9)
ASI Xaiv tau tawm: daim iav ntawm ib MPTS
IP I/O Stream Output
Tus IP I/O
RJ45 chaw nres nkoj: 100/1000M GbE Chaw nres nkoj, 1 * DATA chaw nres nkoj siv rau kev tawm tswv yim thiab tawm
IP tso zis: 1 * MPTS & 127 * SPTS UDP / RTP IP tso zis (4 * RF tawm)
8 * MPTS & 512 * SPTS thaum 8 * RF tawm
IP tswv yim: 128 * MPTS / SPTS UDP / IP
TS dhau UDP, unicast, thiab multicast streaming TS dhau IP
Qhov system
Configuration Interface: web-based
Txhim kho tej thaj chaw deb: ntawm network
Connector: RJ45, 10/100M Ethernet interface
