Nta:
High-performance media engine thiab tiam tshiab ntawm architecture tsim--- muaj peev xwm ntawm Kaum txhiab tus neeg sib haum xeeb yooj yim.
Lub compatibility nrog ntau yam ntawm kawg-players--- PC, xov tooj ntawm tes, TVs, ncoo (IOS/Android/Windows)) rau kev ua yeeb yaj kiab zoo.
Customizable--- Muaj peev xwm muab / txhim kho API interface rau kev koom ua ke rau hauv cov neeg siv khoom qhov system uas twb muaj lawm raws li qhov xav tau.
Stability & Yooj yim & nyab xeeb--- Tsim los rau kev tshaj tawm theem ua haujlwm nrog Linux OS rau kev khiav 24/7/365.
Nrog VOD system kev koom ua ke--- paub txog Live/VOD kev pabcuam ntawm ib lub cuab yeej.

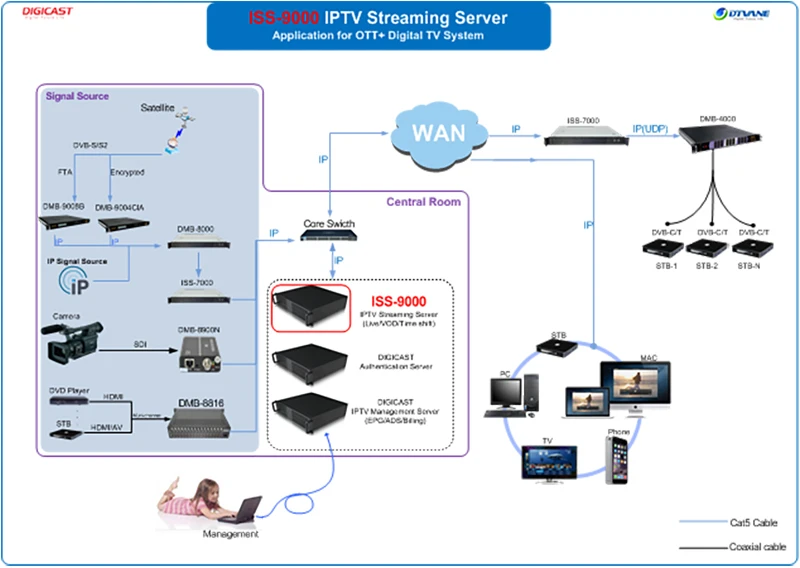

Daim ntawv thov
Cim npe nrov: Tuam Tshoj iptv faib system manufacturers, lwm tus neeg, Hoobkas
Specifications
| Txuj | ISO/IEC 14496-10 (H.264) |
| ISO/IEC 14496-3: 1999 thiab AMD1 2000 (AAC LC) | |
| ISO 13818 (MPEG-2) | |
| Ua si hom | LIVE, VOD |
| Ntim Hom | FLV, TS, MP4, M3u8 |
| Video raws tu qauv | HTTP, MMS, UDP, RTSP, RTMP, HLS, GRMP thiab lwm yam. |
| Tswv yim | IP ntws: thawb streaming, rub streaming |
| VOD: files | |
| Raws li koj xav tau | |
| Video hom ntawv | H.264, H.265 |
| Multimedia stream technology | HTTP dynamic adaptive DASH |
| Audio format | AAC, AC3, MP3 |
| Kev tshaj tawm hom | HTTP (FLV, HTTP(ts), RTMP, HLS, DASH, GRMP |
| Cov ntaubntawv povthawj siv | AVI, TS, MP4, MPEG-1, MPEG-2, MPEG-4, WMV thiab lwm yam; |
| Kev ruaj ntseg | |
| Anti-tub nyiag-link | cov ntaub ntawv txheej authenticated encryption, token authentication technology, ntau network authentication, Static authentication, zais zais yuam kev, thib peb-token memcached authentication server |
| Kev ruaj ntseg network | siv cov dub thiab whitelist firewall nqis |
| Player terminal | TVs (set top box), ncoo, xov tooj ntawm tes, PC thiab lwm yam |
| Terminal qhov system | Android, iOS (HLS section) windows thiab lwm yam ntse Terminal |
| Terminal adapter | Adobe Flash Player; iPhone, iPod, iPad (IOS3.0 lossis tom qab) |
| QuickTime Player; Safari; Android (2.0 lossis tom qab) ntaus ntawv | |
| VLC Player; Lwm HLS-compatible players | |
| Kev soj ntsuam xyuas | Cov ntaub ntawv txheeb cais rau cov ntaub ntawv network broadband, cov neeg siv, noj thiab lwm yam, saib xyuas kev noj CPU, kev cia sab hauv, qhov chaw hard-disk |
| Muaj peev xwm | Muaj peev xwm thauj khoom muaj zog, txhua chav ISS-9000 txhawb nqa txog 10K cov neeg siv sib txuam |
| Kev ruaj ntseg | Nrog kev tshaj tawm theem ua haujlwm tsim los rau kev khiav 7x24/365 |
| Kev Ua Haujlwm | Muaj embedded Linux operating system |
| Tswj txoj kev | Web-based tswj chaw taws teeb, paub txog kev teeb tsa los ntawm lub vev xaib chaw taws teeb ua haujlwm hauv txhua lub cuab yeej txhua lub sijhawm, nyob qhov twg |
| Kev daws teeb meem | 160*120, 176*144, 320*240, 352*288, 352*240, 640*480, 800*600, 720*480, |
| 720*576, 1024*576, 1024*768, 1152*864, 1280*720, 1280*800, 1280*960 | |
| 1280*1024, 1300*768, 1336*768, 1360*768, 1366*768, 1440*900, 1600*900 | |
| 1600*1024, 1600*1200, 1680*1050, 1920*1080, 1920*1440, 2048*1080 | |
| 2560*1440, 3840*2160, 4096*2160 | |
| Ncej tus nqi:0fps, 1fps, 5fps, 10fps, 15fps, 29.97fps, 30fps, 50fps, 60fps | |
| Video Signal Recording Frame Rate | |
| 720P: 1-60 ncej | |
| 1080P: 1-30 ncej | |
| 4K: 1-30 ncej | |
| Qhov hnyav | 9, 5kg |
| Kub | 0 ~ 45 degree (ua haujlwm), -20 ~ 80 degree (cia) |
| Qhov hluav taws xob | AC110V ± 10%, 50/60Hz |
| AC 220V ± 10%, 50 / 60Hz | |
| Fais fab mov | 350W |
